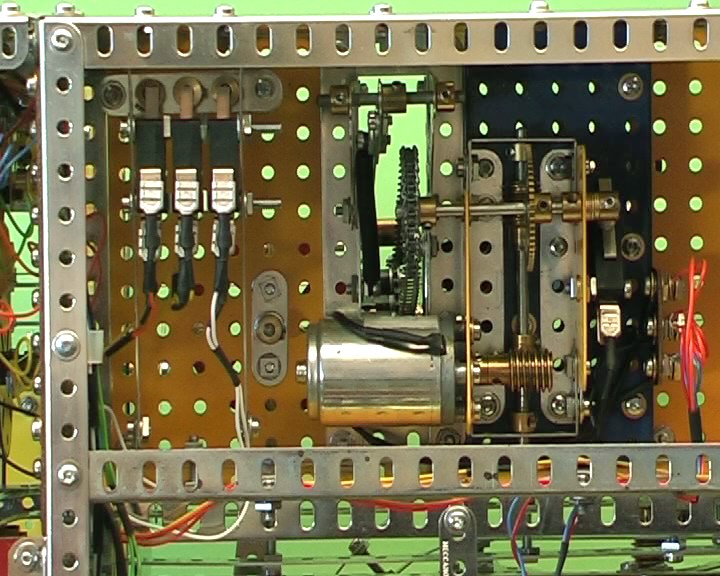

Capstan Motor (fig 40)

Figure 40

This last picture shows the motor and drive for the for the Windlass that starts off the whole affair.
The three limit switches on the left are the ones I have mentioned before and are used to hand set the Bucket, Thingy-ma-jig and Windlass.
