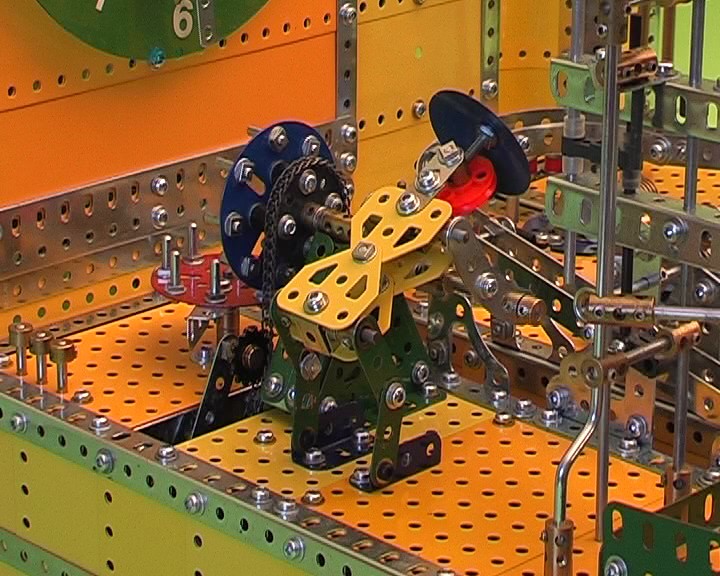

Coolie Figure 3

This is a pic of the mechanical gentleman who is responsible for starting the mouse catching sequence. He has just started turning the handle.
The three trumpet like valve plungers that can be seen to the left are used when it is necessary to reset some limit switches when preparing the model for automatic sequencing.

Next picture: Boot (fig 4).
