Thingy Motor (fig 33)

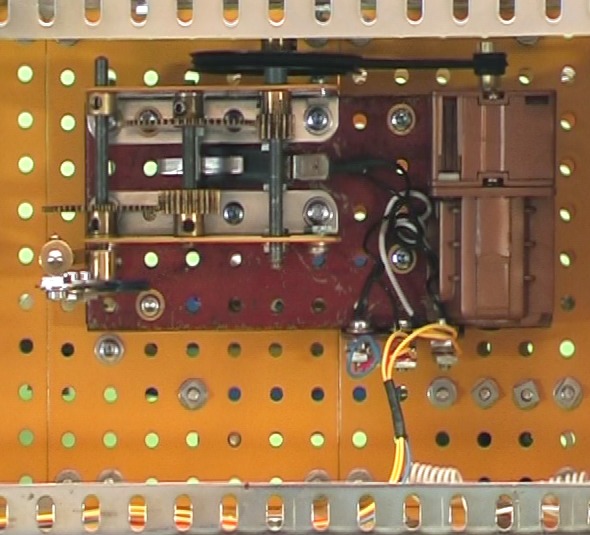

This pic shows the Single Rotate Device that helps to reset the 'Thingy-ma-jig'. Almost identical to the last one except that this one has a half inch eccentric in place of the triple throw.

Next picture: Reset 1 (fig 34)
