Overhead View Figure 2

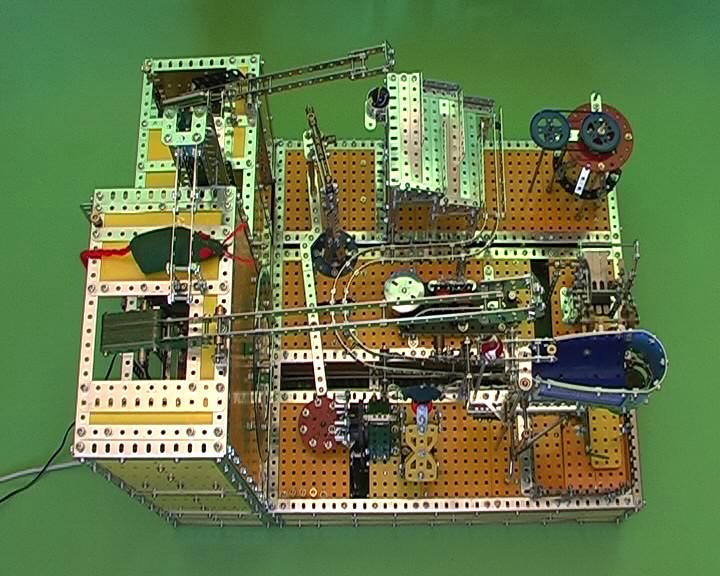

Here is a birds eye view of Mousetrap showing all of the major external components. The 'Mechanical Man' has just started to turn the 'Windlass'.

A few statistics:
11 motors in all are used.
25 limit switches used to control movements
50 matched marbles are rotated in use.

Next picture: Coolie at work (fig 3).
