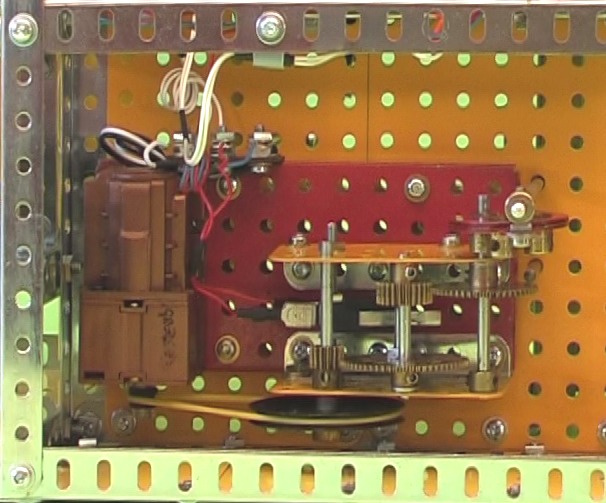

Bucket Reset Motor (fig 32)

This pic shows the Single Rotate Device used to reset the bucket. Like the Diver device, it is used twice in the cycle. First to push the reset rod up, turn the bucket and hold it steady and then later to withdraw the rod. Thus the final drive is geared down to half a revolution and rotates a triple throw eccentric, set in the one inch position.
